6063-T5 vs. 6061-T6: Which Aluminum Alloy Is Better Suited for High-Traffic Commercial Doors?

Characteristics of High-Traffic Commercial Doors

• High-Strength Load-Bearing Structure: Taking Shenghai Aluminum Group’s custom commercial aluminum doors as an example, the primary load-bearing components feature thickened wall thickness (≥2.0mm) to resist impact and distortion, easily withstanding hundreds or even thousands of daily openings and closings, as well as accidental collisions from carts and cargo.
• Fatigue Resistance and Durability: The entire door must pass industry durability testing standards of ≥500,000 cycles (or even over 1 million cycles) to ensure that critical load-bearing components, such as hinges and tracks, do not fail under long-term high stress.
• Extra-Large Dimensions: To accommodate high foot traffic and logistics demands, commercial doors typically have a width of ≥1.5m and a height of ≥2.3m. Despite their large size, these doors must feature low-effort operation or seamlessly integrate with automatic sliding/swing door systems and IoT access control systems.
• Life Safety and Security Ratings: Standard emergency push-bar locks enable one-second escape during emergencies such as fires; additionally, multi-point locking systems and burglar-resistant tempered glass provide commercial-grade intrusion protection.

Features of Standard Residential Aluminum Doors

• Minimalist Aesthetics and Abundant Natural Light: Featuring narrow-frame designs (visible profiles as narrow as 20–30 mm) to maximize glass area and enhance the sense of openness indoors; commonly used in balconies and living rooms.
• Superior Thermal Insulation and Soundproofing (Thermal Break Structure): Widely utilize a thermal break aluminum structure with PA66 thermal break strips to isolate indoor-outdoor temperature differences and reduce energy consumption; combined with double-pane insulated glass, sound insulation can reach 30–40 dB, meeting the quietness requirements of street-facing residences.
• Extensive surface finishes: Designed to complement interior decor, with options including multi-color fluorocarbon coating, powder coating, or realistic wood grain transfer.
• Standard operating mechanisms: Primarily casement, inward-opening tilt-and-turn, and standard sliding configurations, with the vast majority operated manually; thus, the requirements for the frame material’s ultimate yield strength are relatively moderate.

6063-T5 and 6061-T6: Both belong to the 6xxx series of aluminum alloys

Both are Al-Mg-Si (aluminum-magnesium-silicon) alloys, 100% recyclable, and the most mainstream eco-friendly materials in the construction and industrial sectors. However, subtle adjustments in the internal element ratios of these two grades determine their distinctly different application scenarios.

Advantages of 6063-T5

6063 is the most widely used alloy in architectural doors and windows, offering superior formability and surface aesthetics.

• Excellent extrusion capabilities: Compared to 6061, 6063 allows for faster extrusion speeds and can easily produce complex multi-chamber profiles for thermal break aluminum windows, ensuring high production efficiency and stable delivery schedules.
• Top-tier surface finish: After anodizing, the oxide film is dense, with exceptional gloss and uniform color without any color variation; powder coating and wood grain transfer exhibit excellent adhesion, meeting the stringent aesthetic requirements of high-end residential projects.

6061-T6: Shenghai’s Preferred Choice for High-Frequency Commercial Doors

Although 6063 is sufficient for standard doors and windows, Shenghai Aluminum Group insists on using 6061-T6 for heavy-duty commercial doors because it is the most suitable alloy for this application.

Why is 6061-T6 the ideal choice for heavy-duty commercial doors?

• Supports extra-wide spans without warping or deformation: The substantial weight of the glass and metal in commercial doors generates extreme lever torque. The high yield strength of 6061-T6 ensures that the door frame remains perfectly level and plumb even after 10 years of use, with no gaps or dragging on the floor.
• Fatigue Resistance and Strong Hardware Bonding: Heavy-duty hardware components installed on commercial doors—such as door closers, push-bar locks, and automatic door motors—must be securely fastened to the aluminum profiles with screws. The high hardness and tensile strength of 6061 prevent threaded holes from stripping and ensure they remain secure even under long-term stress.
• Exceptional track wear resistance: The load-bearing tracks and drive mounting surfaces that automatic doors rely on are subjected to high-frequency friction daily. The high hardness of 6061-T6 significantly reduces track wear, ensuring the long-term precision and quiet operation of the automated system.

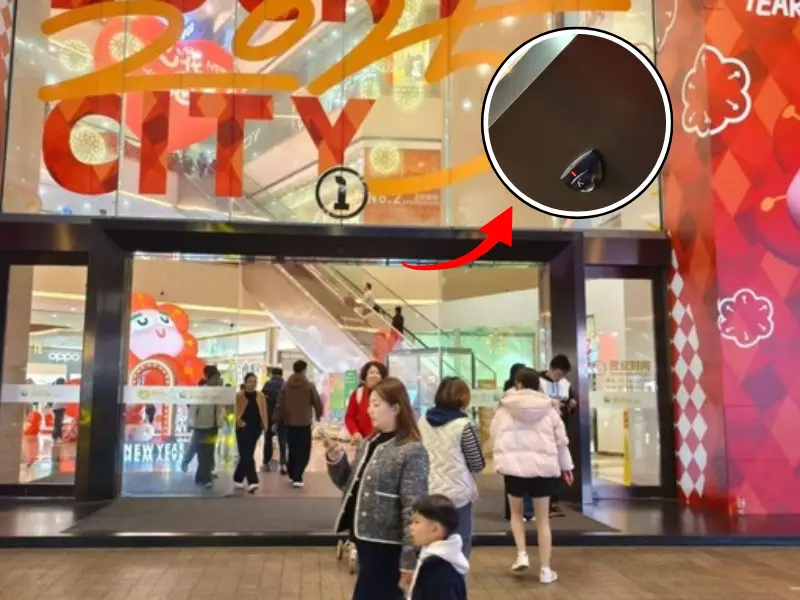

6061-T6 Commercial Door Example: A 13-Year-Old Door at a Guangzhou Shopping Mall—Reasons to Choose It

Today at Guangzhou Wanda, I came across something remarkable: the main entrance door at the North Gate was installed in 2013. After 13 years of opening and closing thousands of times daily and being struck countless times by shopping carts, it still operates smoothly, the door frame remains straight, and the tracks show almost no wear—only the belt and sensor have been replaced.
The side door next to it, installed in 2019, had to be completely replaced last year!
Upon inquiry, I learned that the older door used 6061-T6 aluminum alloy, which is 1.6 times stronger than standard 6063. Doing the math: 6061 lasts 20 years at 600 yuan per year, while 6063 lasts 5 years at 1,600 yuan per year.
You really shouldn’t skimp on doors in commercial renovations!

When should you choose 6063-T5 versus 6061-T6?

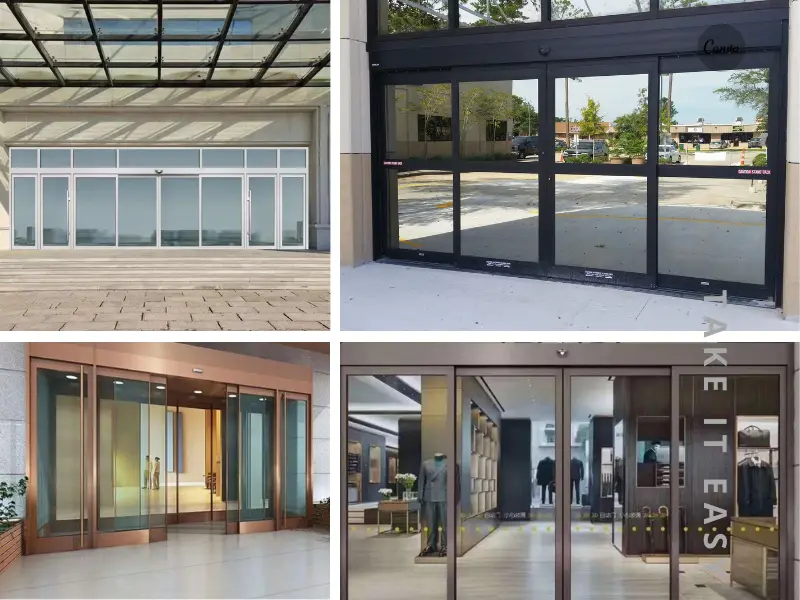

Choose 6061-T6 (Performance Priority / Extreme Conditions)

Initial material and processing costs are slightly higher, but long-term maintenance costs are extremely low. It’s suitable for projects with high demands for strength, fatigue resistance, and maintenance-free operation:

• High-traffic core entrances/exits with over 10,000 daily openings/closings (mall main entrances, hospital main entrances, airport corridors), to prevent hardware screw holes from stripping or loosening
• Extra-large, heavy glass doors with width >1.5m and height >3m, relying on a high yield strength of 276 MPa to prevent sagging and deformation
• Automated access control systems paired with heavy-duty sensor-activated sliding doors and heavy-duty motors, to reduce track wear
• Coastal areas with high wind pressure, and high-security zones requiring protection against shopping cart or forklift impacts

Choose 6063-T5 (Aesthetics Priority / Standard Conditions)

Offering the best value for money and fastest delivery, this is the optimal choice when performance does not need to be excessive:

• High-end retail facades for luxury boutiques, jewelry stores, and similar establishments with extremely high requirements for surface finishes (e.g., brushed gold, black anodized)
• Interior partition doors for office meeting rooms and executive offices, allowing for ultra-minimalist, ultra-narrow frames
• Standard-traffic commercial exterior doors requiring high thermal break insulation
• Conventional projects with tight budgets and tight schedules

Quick Selection Reference

Data references: typical mechanical properties per ASTM B221. Actual performance may vary based on temper, thickness, and extrusion conditions. Always consult with manufacturer for project-specific recommendations.
